Nutecsys and Nu-tecsys Mig Guns By Nutec

Nu-Tec^® professional and commercial grade MIG guns. Nutecsys and Nu-tecsys Mig Guns

NM-C Series - Commercial Grade - Air Cooled MIG Guns

NM13C

160A MIG Gun w/ Insulated Nozzle - Air Cooled
Power Rating: 160 A-CO2 / 130 A-Mix Gas @ 60% DC
Wire Capacity: .024" - .035" (0.6mm - 0.9mm)

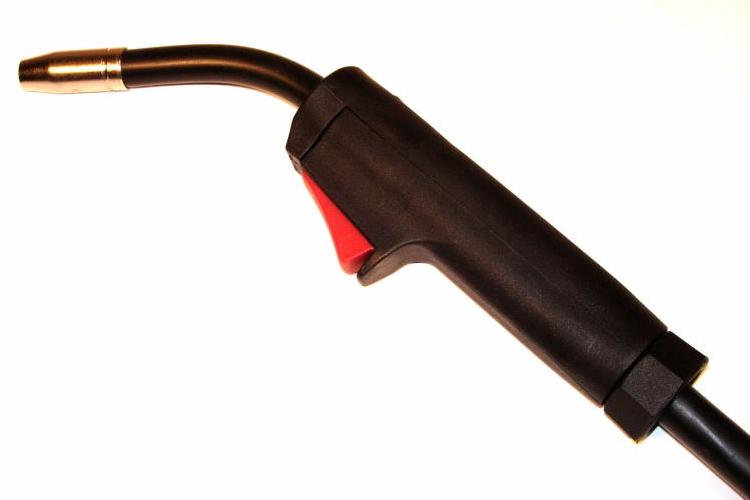

NM14C

160A MIG Gun w/ Insulated Nozzle - Air Cooled
Power Rating: 160 A-CO2 / 130 A-Mix Gas @ 60% DC
Wire Capacity: .024" - .035" (0.6mm - 0.9mm)

NM23C

200A MIG Gun w/ Tapered Nozzle - Air Cooled
Power Rating: 200 A-CO2 / 180 A-Mix Gas @ 60% DC
Wire Capacity: .024" - .045" (0.6mm - 1.2mm)

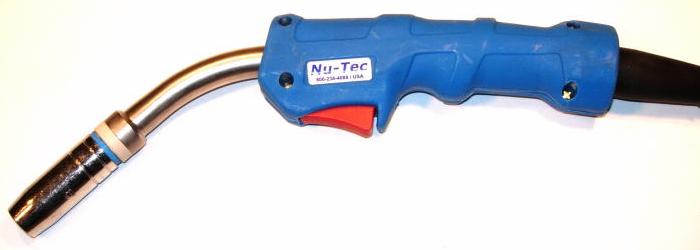

NM25C

230A MIG Gun w/ Insulated Nozzle - Air Cooled
Power Rating: 230 A-CO2 / 200 A-Mix Gas @ 60% DC
Wire Capacity: .024" - .045" (0.6mm - 1.2mm)

NM Series - Professional Grade - Air Cooled MIG Guns

NM15

180A MIG Gun w/ Insulated nozzle - Air Cooled
Power Rating: 180 A-CO2 / 150 A-Mix Gas @ 60% DC
Wire Capacity: .024" - .035" (0.6mm - .09mm)

NM24

250A MIG Gun w/ Tapered Nozzle - Air Cooled
Power Rating: 250 A-CO2 / 220 A-Mix Gas @ 60% DC
Wire Capacity: .024" - .045" (0.6mm - 1.2mm)

NM26

300A MIG Gun w/ Tapered Nozzle - Air Cooled
Power Rating: 300 A-CO2 / 260 A-Mix Gas @ 60% DC
Wire Capacity: .030" - .062" (0.8mm - 1.4mm)

NM36

360A MIG Gun w/ Tapered Nozzle - Air Cooled
Power Rating: 360 A-CO2 / 340 A-Mix Gas @ 60% DC
Wire Capacity: .030" - .062" (0.8mm - 1.6mm)

NM38

410A MIG Gun w/ Tapered Nozzle - Air Cooled
Power Rating: 410 A-CO2 / 370 A-Mix Gas @ 60% DC
Wire Capacity: .035" - .062" (0.9mm - 1.6mm)

NM-W Series - Professional Grade - Water Cooled MIG Guns

NM401W

400A MIG Gun w/ Tapered Nozzle - Water Cooled
Power Rating: 400 A-CO2 / 350 A-Mix Gas @ 100% DC
Wire Capacity: .030" - .062" (0.8mm - 1.6mm)

NM501W

500A MIG Gun w/ Tapered Nozzle - Water Cooled
Power Rating: 500 A-CO2 / 450 A-Mix Gas @100% DC
Wire Capacity: .030" - 3/32" (0.8mm - 2.4mm)

NM602W

550A MIG Gun w/ Tapered Nozzle - Water Cooled
Power Rating: 560 A-CO2 / 550 A-Mix Gas @ 100% DC
Wire Capacity: .035" - 3/32" (0.9mm - 2.4mm)

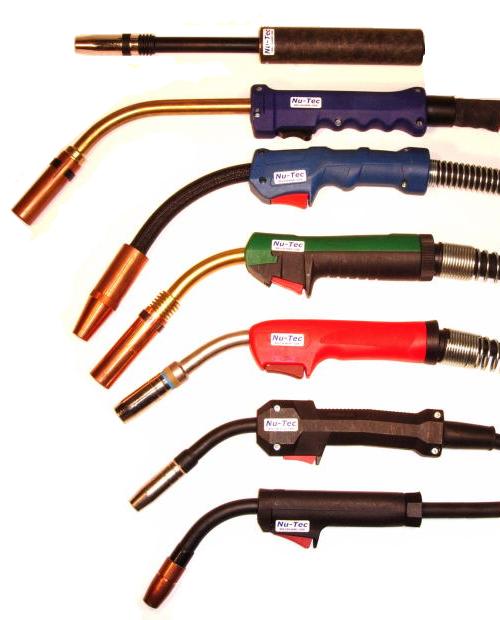

Nu-Tecsys® Custom MIG Guns

In addition to all of the standard Mig gun models offered from stock, Nu-Tec Systems offers made-to-order special, private-label and custom application Mig guns with various types of handles & cables with interchangeable consumables for all major manufacturer's products. And that's not just U.S. manufacturers, Nu-Tec has over 25 years experience with welding systems produced world-wide. Whether it's a red handle or a special neck or a special nozzle or a custom power cable assembly, Nu-Tec makes it and often has the components readily available for immediate delivery.

Custom MIG Gun Options

Nu-Tecsys Interchangeable Consumables- Nu-Tec Systems has a complete offering of interchangeable mig gun consumables for Bernard®, Binzel®, ESAB®, Firepower®, Hobart®, Lincoln®, Miller®, Tregaskiss®, Tweco® and many European manufacturers as well.
